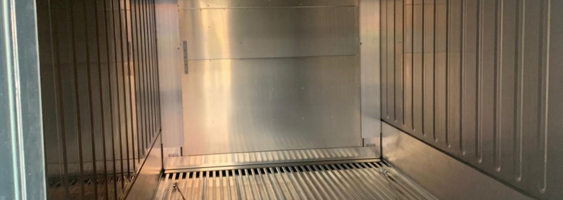

The new 10 foot reefer container , also called 3m refrigerated container allows you to store a multitude of food and non-food products in a controlled atmosphere. As this container is quite rare on the used market, it is then custom made from a 20 foot reefer container.
These transformations require a visit to the workshop and justify the higher price than a standard 20 feet or 40 feet container. Very resistant to shocks and bad weather, waterproof and airtight, it has all the mandatory conditions to be able to be transported outside the territory (CSC standards, approval, etc.).


Technical specifications.
Interior dimensions
-Length: 2389 mm
-Width: 2294 mm
-Height: 2273 mm
-Interior height (up to loading limit): 2,173 mm

External dimensions
-Length: 2,991 mm
-Width: 2438 mm
-Height: 2,591 mm

Door dimensions
-Width: 2292 mm
-Height: 2264 mm

Temperature: -25 to 25 ° C

Refrigerant
-R134 A
-R404
-R442 on request

Structure: CORTEN and INOX
Floor
T-SHAPED ALU RAIL
Management by a Daikin, Thermoking or Carrier console
Double leaf opening on one of the exterior faces
Doors open at 270 °

Additional information
-Max load: 12 400 kgs
-Weight empty: 2,600 kgs
-Max weight: 15,000 kgs
-Usable interior volume (up to maximum ventilation line): 11.91 m3
-Total interior volume: 12.45 m3

The New 45ft High Cube Containers is suitable for ocean freight, storage and fitting out. The 45-foot high cube container is particularly resistant because its entire Corten steel structure is made up of corrugated iron walls and spars on which a 28mm marine plywood floor resides. Technical specifications. Interior dimensions:- Length: 13,557 mm - Width: 2,414 mm - Height: 2,690 mmExternal dimensions:- Length: 13,716 mm - Width: 2,438 mm - Height: 2,896 mmDoor dimensions:- Width: 2340 mm - Height: 2580 mmStructure: CORTEN fully weldedFloor: MARINE plywood 28 mmOpening on an exterior face by two robust doors Resistant closures by 4 vertical cremones Doors open at 270 °.Further information:- Max load: 25,600 kg - Empty weight: 4,820 kg - Max weight: 30,420 kg

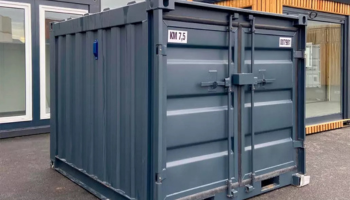

The 6 feet storage containers with valid CSC plate are equipped with ISO corners and forklift pockets for handling. The used 6-foot storage containers are completely overhauled, watertight and airtight. With its small footprint, the 6-foot container finds its place!


Technical specifications.
Interior dimensions:
- Length: 1800 mm - Width: 1860 mm - Height: 1730 mm
External dimensions:
- Length: 1980 mm - Width: 1950 mm - Height: 1910 mm
Door dimensions:
- Width: 1,800 mm - Height: 1,650 mm
Structure: CORTEN fully welded
Floor: OSB 22 mm / Marine plywood 21 mm / Steel floor 3 + 1 mm
Doors open at 270 °.
Further information:
-Max load: 2,000 kg -Weight empty: 570 kg -Max weight: 2,050 kg -Fork passage: 950mm

The New 15 foot open side storage container is widely used for construction sites or for self-storage. The 15-foot side-opening container is equipped with a double-leaf door with padlock cover.


Technical specifications.
Interior dimensions:
- Length: 4300 mm - Width: 2308 mm - Height: 2361 mm
External dimensions:
- Length: 4500 mm - Width: 2438 mm - Height: 2591 mm
Door dimensions:
- Width: 2340 mm - Height: 2280 mm
Structure: CORTEN fully welded
Floor: OSB 22 mm / Marine plywood 21 mm / Steel floor 3 + 1 mm
Doors open at 270 °.
Further information:
- Weight: 980 kg
- Max load: kg
- Max weight: kg

The used 40 foot standard container is very robust with its structure in corten steel and its padlock cover, it guarantees the security of the stored products. Sides and front in sheet steel with side ventilation, double-leaf door with closing bars. ISO corners and forklift pockets, watertight and airtight, wooden floor laid on steel sleepers. The used 12m container or 40ft last trip container is also available in several qualities supplied with a valid CSC plate.


Technical specifications.
Interior dimensions:
- Length: 12,029 mm - Width: 2350 mm - Height: 2398 mm
External dimensions:
- Length: 12,192 mm - Width: 2,438 mm - Height: 2,591 mm
Door dimensions:
- Width: 2340 mm - Height: 2280 mm
Structure: CORTEN fully welded
Floor: MARINE plywood 28 mm
Opening on an exterior face by two robust doors Resistant closures by 4 vertical cremones Doors open at 270 °.
Further information:
- Max load: 26,460 kg - Empty weight: 3,590 kg - Max weight: 30,480 kg

The used 40 foot high cube container is a dry container of 12 m long waterproof with a cubage 76 m3 and a height of 2.89 m. This dry container can be used for storage, maritime transport, export of goods, but also for the construction of houses based on containers for example.


Technical specifications.
Interior dimensions:
- Length: 12,029 mm - Width: 2,350 mm - Height: 2,690 mm
External dimensions:
- Length: 12,192 mm - Width: 2,438 mm - Height: 2,890 mm
Door dimensions:
- Width: 2340 mm - Height: 2580 mm
Structure: CORTEN fully welded
Floor: MARINE plywood 28 mm
Opening on an exterior face by two robust doors Resistant closures by 4 vertical cremones Doors open at 270 °.
Further information:
- Max load: 26,460 kg - Empty weight: 3,940 kg - Max weight: 30,480 kg
